同步帶輪型號

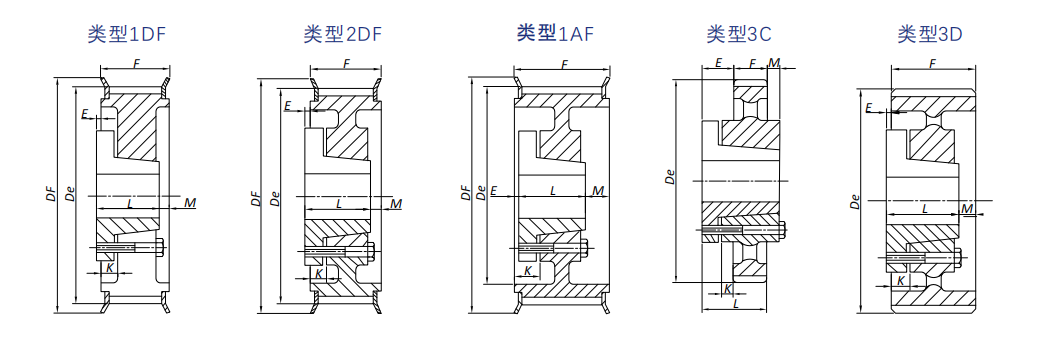

類型

錐套
型號

齒數(shù)

外圓

直徑

節(jié)距圓

直徑

擋圈

直徑

齒寬

E

K

L

M

Dp

De

DF

F

inch

inch

inch

inch

inch

inch

inch

inch

XXH500-E22T-F

1AF

E

22.0

8.8

8.6

9  1/2

5 13/16

15/16

3/32

2  3/4

2  3/32

XXH500-F24T-F

2AF

F

24.0

9.5

9.4

10  5/16

5 13/16

5/16

1  1/32

3  3/4

1 21/32

XXH500-F26T-F

2AF

F

26.0

10.3

10.2

11  1/16

5 13/16

5/16

1  1/32

3  3/4

1 21/32

XXH500-J30T-F

2DF

J

30.0

11.9

11.8

12 11/16

5 13/16

1/8

1  5/16

4  5/8

1  5/16

XXH500-J34T-F

2DF

J

34.0

13.5

13.4

14  1/4

5 13/16

1/8

1  5/16

4  5/8

1  5/16

XXH500-J40T-F

3DF

J

40.0

15.9

15.8

16  5/8

5 13/16

1/8

1  5/16

4  5/8

1  5/16

XXH500-M48T

3D

M

48.0

19.1

19.0

-

5 13/16

1  9/32

5/16

6  3/4

5/16

XXH500-M60T

3D

M

60.0

23.9

23.8

-

5 13/16

1  9/32

5/16

6  3/4

5/16

XXH500-M72T

3D

M

72.0

28.6

28.5

-

5 13/16

1  9/32

5/16

6  3/4

5/16

XXH500-M90T

3D

M

90.0

35.8

35.7

-

5 13/16

1  9/32

5/16

6  3/4

5/16
